Ekhwesi: Single Phase Din Rail Pre-paid Meter

Ekhwesi's new wBEC44 integrated wireless meter range provides the building block for a revolutionary new smart solution. The compact DIN rail meter is packed with features to enhance customer satisfaction, whilst providing the valuable data needed by utilities worldwide.

Added to this is the ability for the meter to operate as a prepayment or post-payment meter, depending on the utility's requirements. The greatest benefit and cost saving is that through the use of integrated radio frequency (RF), the meters are not subject to line interference and don't require the costly addition of filters, Making this a simple, quick and cost effective solution for today and tomorrow.

Main Features

• Operates as prepayment or post-payment meter
• Configurable credit management options
• Thermal shutdown protection
• Reverse energy management
• Delayed reconnection

Product Specifications:

Description	Value
Voltage ratings Nominal voltage (-20% +15%) Supply frequency (±5%)	220VAC - 240VAC 50Hz
Current ratings Base current (Ib) Max current (Imax) Min starting current Class 1 Class 2 Utilisation category	5A 100A 20mA 25mA UC2
Nominal power consumption	1.2W / 9VA
Accuracy	Class 1 and 2 (maintained throughout life cycle of product)
Over voltage rating	420VAC for 48 hours
Short circuit rating	Short-circuit withstand 3.0kA
Protection	Power overload Current overload Thermal Over / under voltage Line / load reversal
Environmental Operating temperature Storage temperature Humidity IP rating RF immunity	-10°C to +55°C -25°C to +70°C 95% non-condensing PL - IP54 30V/m
Status indicators	Load / power status MCU / UIU communication Rate LED (1000 pulses / kWh) (On MCU)
Installation Footprint Insulation class	DIN rail mounted (35mm) Double insulation
Terminals Type Maximum size	Live:    Cage clamp    25mm Neutral:      Cage clamp    16mm
Interrogation Type	Type A (direct probe)
Security Meter housing Tamper protection	Security seals Tamper terminal cover Load disconnection on tamper detection
Standards	IEC 62052-11 IEC 62053-21 IEC 62055-21 IEC 62055-31 IEC 62055-41 IEC 62055-51 IEC 62055-52 SANS 1524-1 SANS 15417 STS 101-1 STS 201-15.1.0 DSP 34-749 DSP 34-1527 DSP 34-1635 ISO 14001:2004 ISO 9001:2008
Packaging Units per carton Carton weight (incl box)	Wallbase 10 3.12kg

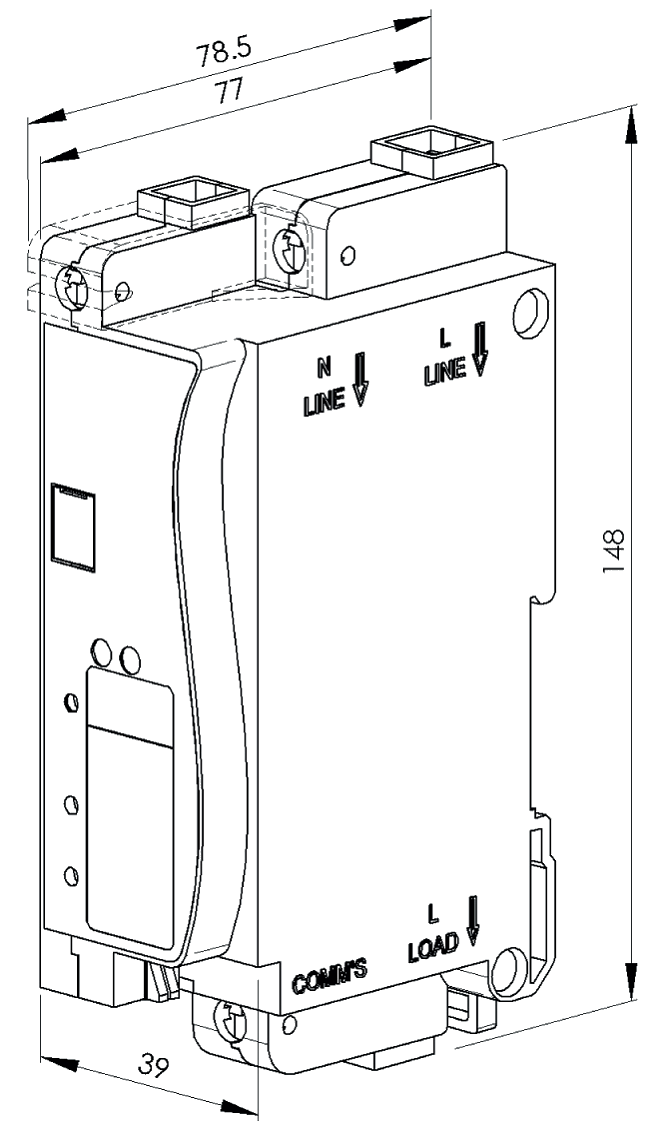

Overall Dimension

Standard Definition Short Codes

Code	Description
#000#	Dispenser test (STSO)
#001#	Load switch test (STS1)
#002#	Display test (STS2)
#003#	Input test device (STS6)
#004#	Accumulated energy consumed - MTTD (STS3)
#005#	Key revision and key type (STS4)
#006#	Tariff index (STS5)
#007#	Maximum power limit (STS7)
#008#	Tamper status (STS8)
#009#	Available credit
#010#	Phase unbalance (STS11)
#011# - #029#	STS reserved

Meter Operational Short Codes

Code	Description
#200#	Value of last credit token entered
#201#	ID of last credit token entered
#202#	Value of 2nd last credit token entered
#203#	ID of 2nd last credit token entered
#204#	Value of 3rd last credit token entered
#205#	ID of 3nd last credit token entered
#206#	Value of 4th last credit token entered
#207#	ID of 4th last credit token entered
#208#	Value of 5th last credit token entered
#209#	ID of 5th last credit token entered
#210# - #248#	Not used: value of credit token entered (6th - 25th tokens)
#211# - #249#	Not used: value of credit token entered (6th - 25th tokens)
#251#	Most recent token (Class, subclass, 20 digits, value)
#252#	2nd most recent token (Class, subclass, 20 digits, value)
#253#	3rd most recent token (Class, subclass, 20 digits, value)
#254#	4th most recent token (Class, subclass, 20 digits, value)
#255#	5th most recent token (Class, subclass, 20 digits, value)
#256#	6th most recent token (Class, subclass, 20 digits, value)
#257#	7th most recent token (Class, subclass, 20 digits, value)
#258#	8th most recent token (Class, subclass, 20 digits, value)
#259#	9th most recent token (Class, subclass, 20 digits, value)
#260#	10th most recent token (Class, subclass, 20 digits, value)
#261# - #270#	Not used
#271#	Estimated average daily and 30 day consumption
#272#	Last hour, 24 hour and 30 day consumption
#273#	Number of supply interruptions
#274#	Number of tamper detections
#275#	Lost communications counter
#276#	Eeprom memory data dump
#277#	Active load restriction duration and value
#278# - #299#	Not used

Manual Configuration Short Codes

Code	Description
#050#	Instantaneous power (STS9)
#051#	GPS coordinates
#052# - #069#	STS reserved
#070#	Power consumption per phase
#071#	Current consumption per phase
#072#	Average voltage per phase
#073#	Reason for last disconnect
#074#	Time remaining till zero credit
#075#	RF signal strenth
#076#	User total consumption to date
#077#	Total user credit entered
#078#	STS token result
#079#	Manual reconnect
#080#	UIU reset
#081#	Display UIU refresh interval
#082#	Meter tamper switch status
#083#	Not used
#084#	Last post paid / prepaid tenancy change MTTD register
#085#	Manual disconnect
#086#	Reactive power and power factor
#087#	Display consumption counter
#088#	Currently active load limit value
#089# - #099#	Not used

---

---

---

---
